3.0" Inch TFT Custom LCD, IPS 268*800 Pixels LCD Description
TXWEI 300059S0 is a diagonal size 3.0” inch TFT LCD module with resolution 268x800 pixels. This module is built in with ST7701S IC; it includes the controller and driver IC functions, supports RGB interface, and supply voltage (Vdd) range 18V. This module viewing direction is IPS type free viewing angle(85/85/85/85).
300059S0 TFT LCD module is portrait mode with brightness 350 nits. The module also is available for newly design a Resistive Touch Screen and Projected Capacitive Touch Screen. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This 3.0” inch TFT LCD module is widely used in Student reading pen display, household appliance display, musical instrument product display and other products
Product Advantages
- Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
- Wide Temperature of Top of -20℃ to +70℃ for industrial applications.
- Stable Supply for continuous mass production of over 5 years. No EOL worry.
- Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well.
- FPC is customizable to have different interface, pin number and pin assignment, etc.
- Low-cost solution among the same kinds in the LCD industry.
- Easy to install and easy to maintain.
Product Quick Details:
1. LCD Size: 3.0” TFT
2. Resolution: 268*800
3. Viewing Angle: 12 O’clock
4. Outline Dimension: 26.52*78.75*1.65mm
5. Active area: 24.12*72mm
6. Interface Type: RGB 16 BIT Interface
7. Touch Panel: Without Touch Panel(Customizable)
8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
| Product: | 3.0" Inch TFT | Touch Screen: | Without TP(Customizable) |
| Resolution: | 268*800 | Viewing Direction: | 12 O'clock |
| Interface: | RGB 16 BIT Interface | Pin Number: | 40 Pins |
| Connection: | Plugging (customizable) | Surface Luminance: | 350 Cd/m2 |
| Operating Temp: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |

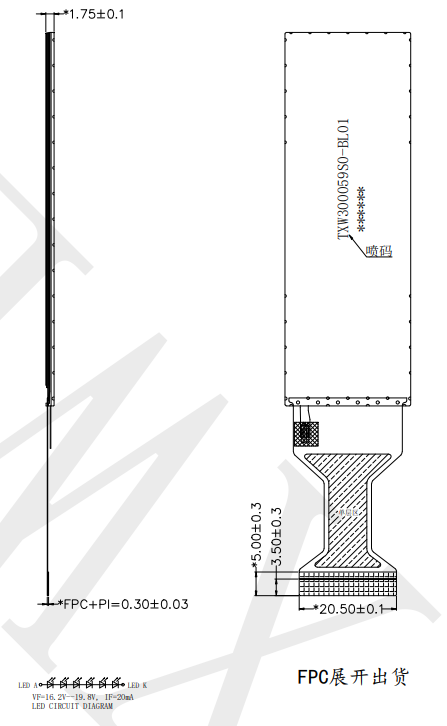

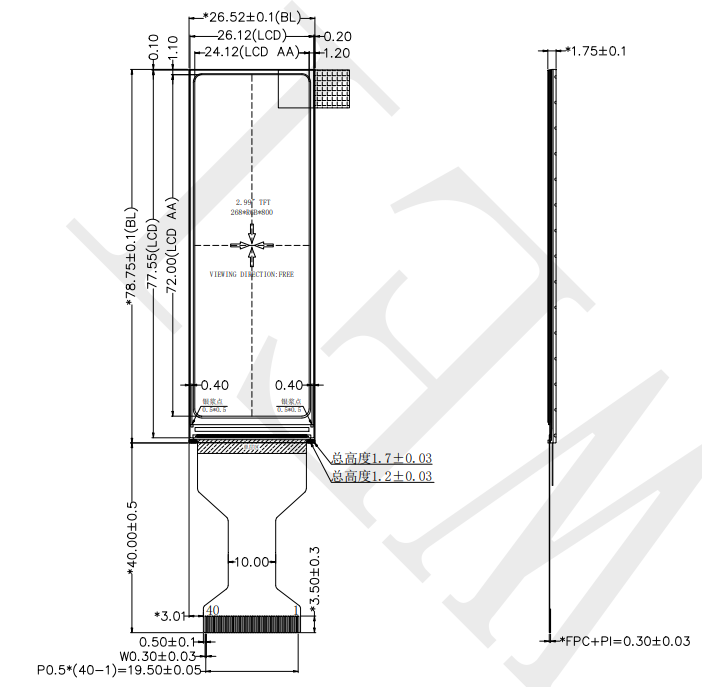

RGB 3.0 inch TFT LCD, 3.0" 268×800 HVGA LCD Display Drawing
Module Function Description
| Pin No. | Symbol | LCM Functional | Notes |
| 1 | LEDA | Power supply for backlight anode input terminal. | |
| 2 | LEDK | Power supply for backlight cathode input terminal. | |
| 3 | VCC3.3V | Power Supply For LCD. | |
| 4 | GND | Power Ground | |
| 5 | LCD_ID0(GND) | Power Ground | |
| 6 | LCD_ID1(GND) | Power Ground | |
| 7 | LCD_ID2(GND) | Power Ground | |
| 8 | GND | Power Ground | |
| 9 | GND | Power Ground | |
| 10 | GND | Power Ground | |
| 11 | GND | Power Ground | |
| 12 | GND | Power Ground | |
| 13 | GND | Power Ground | |
| 14 | VSYNC | Vertical (Frame) synchronizing input signal for RGB interface operation. | |
| 15 | HSYNC | Horizontal (Line) synchronizing input signal for RGB interface operation. | |
| 16 | DOTCLK | Dot clock signal for RGB interface operation. | |
| 17 | DE | Data enable signal for RGB interface operation. | |
| 18 | B0 | Blue data | |
| 19 | B1 | Blue data | |
| 20 | B2 | Blue data | |
| 21 | B3 | Blue data | |
| 22 | B4 | Blue data | |
| 23 | G0 | Green data | |
| 24 | G1 | Green data | |
| 25 | G2 | Green data | |
| 26 | G3 | Green data | |
| 27 | G4 | Green data | |
| 28 | G5 | Green data | |
| 29 | R0 | Red data | |
| 30 | R1 | Red data | |
| 31 | R2 | Red data | |
| 32 | R3 | Red data | |
| 33 | R4 | Red data | |
| 34 | RESET | Reset signal input terminal. Active at ‘L’. | |
| 35 | CS | Chip select signal input pin | |
| 36 | SCL | Serial interface clock | |
| 37 | SDA | Input/Output signal pin | |
| 38 | GND | Power Ground | |
| 39 | VCC3.3V | Power Supply For LCD. | |
| 40 | GND | Power Ground | |
Optical Specification
Reliability Test Item
| No. | Test Item | Test Condition | Notes |
| 1 | High Temp. Storage | +70°C / 96H | 1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow. |
| 2 | Low Temp. Storage | -30°C / 96H |
| 3 | High Tempe. Operating | +60°C / 96H |
| 4 | Low Tempe. Operating | -20°C / 96H |
| 5 | High Temperature /Humidity storage | 50°C x 90%RH / 96H |
| 6 | Thermal and cold shock | Static state, -20℃(30min) ~70℃ (30min),10 cycles |

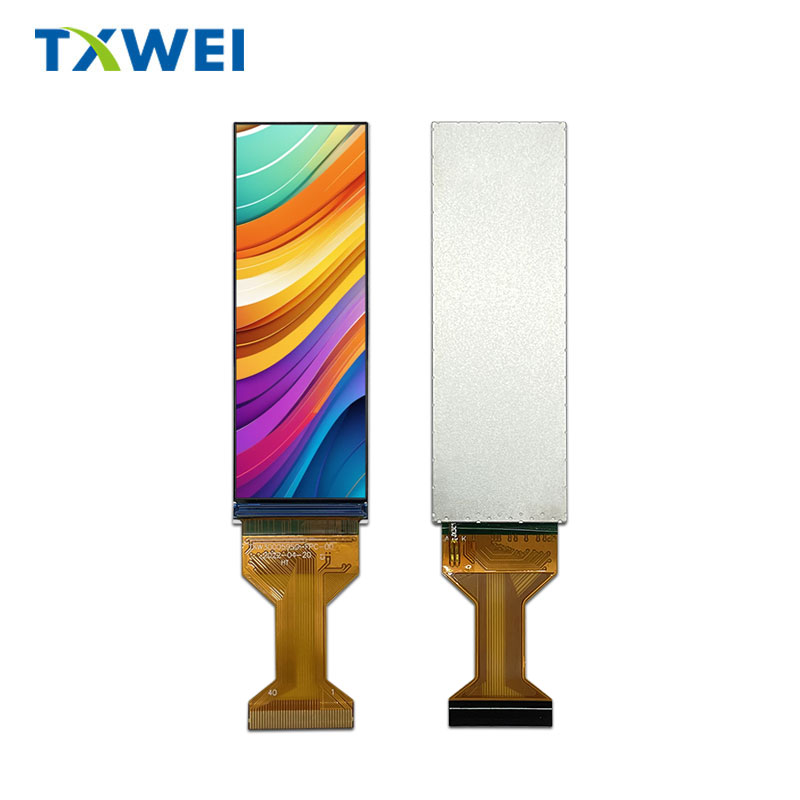

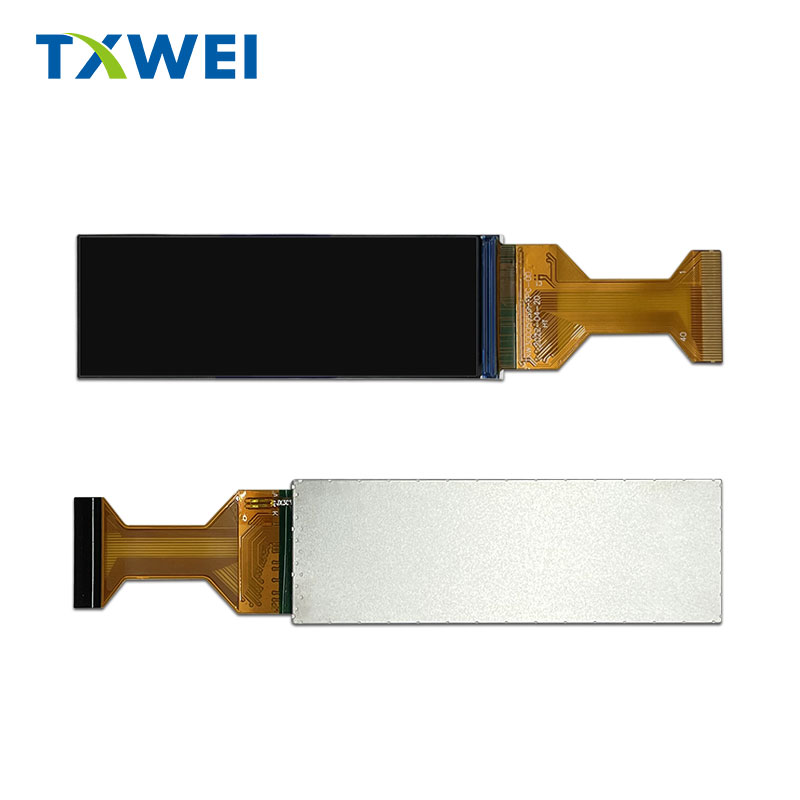

3.0" INCH TOUCH LCD MODULE REAL PRODUCT IMAGE
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
